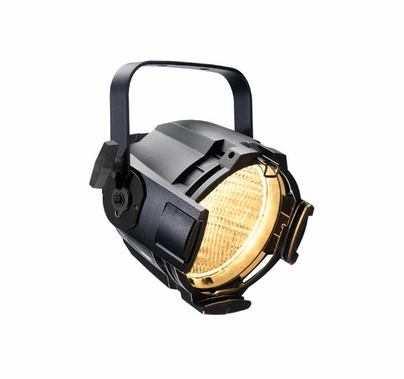

ETC Source Four Par PAR-EA

ETC Source Four Par PAR-EA

The ETC Source 4 Par light is the work horse of the stage and theater industry used for overall general illumination.

The ETC Source Four Par light is used slightly differently in the film, video and photo fields. Because of it high intensity beam, the Source 4 par works great as a sharp edged beam light that looks great as a shaft of sunlight. Also, as they are light weight and extremely bright, they are very useful as a bounce light by simply bouncing off a white card , wall or ceiling, providing a shadowless ambient fill light. The ETC Source Four Par light comes with 4 glass lenses which are used to spread the light from a narrow spot to a broader wash.

ETC Source Four Par PAR-EA (enhanced aluminum) Power, elegance and efficiency - in a PAR! This is no ordinary par can. Source Four PARs stand out of the luminaire crowd with their rugged die-cast aluminium construction and acclaimed Source Four optical technology. Superior brightness and energy savings: Source Four PARs deliver a smooth even field, and at 575 watts are comparable to 1000W PAR64s -- while saving 40% on energy. Need maximum brightness in wash lighting? The Source Four PAR EA is rated for the incomparable 750W HPL lamp. Changing beam angles is easy: Source Four PAR comes with a set of four snap-in lenses that mount in a cool, rotating ring. That also means no more reaching into a hot can with cracked porcelain sockets. And when you need a new lamp, just use your stock of Source Four HPLs (no need to carry a large inventory of expensive PAR64 lamps). The Source Four PAR's compact design means more units can be mounted on a pipe or fitted into a truck. Combined with reductions in power and cable requirements, Source Four PARs are perfect for touring.

Product Features:

• Rated up to 750W
• EA (Enhanced Aluminium) reflector
• Super-efficient HPL lamp
• Interchangeable lenses (VNSP, NSP, MFL, WFL)
• Optional extra-wide flood lens for short-throw applications
• Die-cast faceted reflector

Color: Black

ETC Source Four PAR EA are supplied with 4 lens set: VNSP, NSP, MFL, WFL; color frame and 3' (96cm) electrical lead as standard

***Bulb, C-Clamp and Electrical Connector NOT Included.***

S P E C I F I C AT I O N S:

PHYSICAL

• Die–cast aluminum
• Tool free access to the reflector and lens
• High–impact, thermally insulated knobs
• Sealed reflector housing
• Reflector temperature control through integral heat sink fins
• Gel frame holders with two accessory slots
• Top–mounted, gel–frame retainer
• Steel yoke with two mounting positions
• Positive locking yoke clutch
• UL and cUL listed

  ELECTRICAL


• 115-240V, 50/60Hz
• High–temperature three-conductor 36” leads in a glass fiber outer sleeve
• Supports ETC Dimmer Doubling™ technology
• LAMP HPL — compact tungsten filament contained in a krypton/xenon-filled quartz envelope (see table for suitable lamp types)
• 750W maximum
• Patented filament geometry makes for extremely efficient light collection and transmission
• Integral die–cast aluminum heat sink lamp base
• LENSES Four heat resistant, molded borosilicate glass lenses supplied with each unit: Very Narrow Spot (VNSP), Narrow Spot (NSP), Medium Flood (MFL) and Wide Flood (WFL).
• Round beam for VNSP and NSP, oblong beam shape for MFL and WFL
• Tool free lens changing
• Thermally insulated lens ring

  OPTICAL


• Modified parabolic and multifaceted reflector Computer designed reflector facets molded directly into heat sink casting, finished with an enhanced aluminum deposition process, and polished for maximum reflectance
• Metal Cold Mirror (MCM) also available

  Wt: 7.5 lbs
