Arri M90 HMI Daylight Light System HIGH SPEED
Arri M90 HMI Daylight Light System HIGH SPEEDArri M90 HMI Daylight Light System HIGH SPEEDArri M90 HMI Daylight Light System HIGH SPEEDArri M90 HMI Daylight Light System HIGH SPEED

Arri M90 HMI Daylight 5600K Light System HIGH SPEED

Price:  $34,170.00
Our Price:  $29,044.50 - You Save 15%
SKU:  L0-0006600
Availability:  Usually ships in 5-7 business days
Add to Favorites

Have a Question?
Give Us a Call 1-888-276-3667
If Our Lines Are Busy, Please Call Back.

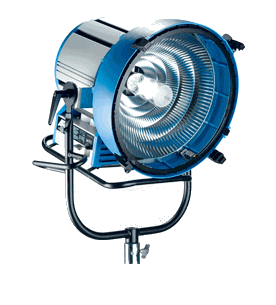

WOW! That's what you will say the first time you see an Arri M90 9,000W HMI par light.

Extreme light output that is 5600k daylight balanced, it's like having your own sun, but you have control of when it rises and when it sets. Utilizing the Arrimax reflector technology means no more hot, fragile, expensive par lenses to deal with. Also, gone is the added space and weight of a lens case. Simply spot and flood the Arri M90 to your desired light output and beam pattern. Plus, the electronic ballast has a built in dimmer for precise lighting control. The Arri M90 is setting the stage for modern hmi film and video lighting.

Arri M90 HMI System Includes:

  • Arri M90 Head L1.37480.B
  • 50' Header Cable L2.0005176
  • Barndoor for M90 4 Leaf L2.37560.0
  • Electronic Ballast 6k / 9k High Speed-ALF-1000Hz ETL

Production is ramping up on the M90, the latest addition to ARRI's popular M-Series of advanced HMI lighting units. The M90 introduces a new power class for daylight fixtures at 9,000 W, which is exactly half the wattage of the ARRIMAX 18/12 and just over double that of the M40/25. With the M18 at the lower end, the M-Series now offers a versatile range of eight evenly-staggered wattage options from 1,200 W to 18,000 W.

Like all M-Series lampheads, the M90 is equipped with MAX Technology, a unique, patented reflector design that unifies the advantages of a Fresnel and a PAR fixture. The unit is open-faced and very bright; it is also focusable from 16 degree up to 49 degree, producing a remarkably even light field and a crisp, clear shadow. ARRI technology partner Osram developed a new 9,000 W lamp for the M90, which is stable at 1,000 Hz and almost as small as the 6,000 W lamp that can alternatively be used. This allowed ARRI to design the M90 in a very compact housing, barely larger than the ARRISUN 60.

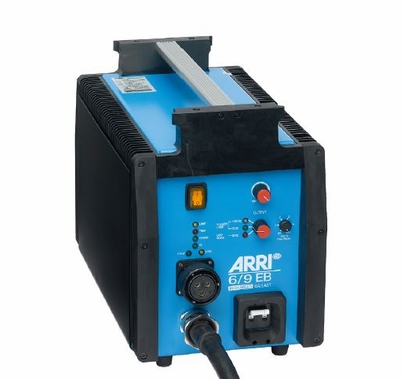

Accompanying the M90 is a new ballast, the EB 6/9 kW, available in standard and high speed versions. Like other recent ballasts from ARRI, it features CCL (Compensation for Cable Loss) technology and the power-saving ALF (Active Line Filter). The EB 6/9 kW is DMX compatible and no bigger than ARRI's existing EB 6000 Baby ballast.

High speed ballasts are starting to become more important with the high speed HD cameras. Up until the M90, 4K was the largest wattage high frequency ballast out there, so it's such a benefit to have this availability now. This is the biggest, brightest unit you'll find with a high speed ballast.

  • Lens-less MAX Technology
  • Closes the gap between M40/25 and ARRIMAX 18/12
  • New 9,000 W power class
  • New 9,000 W Osram lamp, the size of 6,000 W lamp
  • Superior light quality
  • Light output matches a 12K PAR (with lens)
  • As small and lightweight as a 6K PAR
  • Focusable from 16� up to 49�
  • Can also be used with 6,000 W lamps and ballasts
  • Uses existing 6K cables
  • Cross-cooling allows safe operation until 90� tilt position
  • Tilt locks on both sides hold any heavy accessories
  • Easy maintenance
  • Weather resistant to IP23
  • Possibility to operate at 1,000 Hz
  • Type of Lamphead: Open Face Daylight lamphead with MAX reflector
  • Reflector: MAX reflector made of high purity aluminium
  • Power: 6kW / 9kW
  • Lamp Type: 9000W/SE GX38, 6000W/SE GX38
  • Supply Voltage: 56A/160 AC (9,000W); 55A/123 AC (6,000W)
  • Correlated Color Temperature: 6000K
  • Lamp Base: GX38
  • Barn Door Size: 584 mm
  • Mounting: 28 mm spigot
  • Packed Size: 915 x 795 x 950 (W x L x H)
  • Packed Volume: 691.0 l
  • Packed Weight: 60 kg
  • Weight: 39.5 kg
  • Dimensions: 713 x 716 x 814 (W x L x H)
  • Protection Class: IP23
  • Certification: CE, cNRTL, GS, CB

Arri M90 HMI Daylight Light System HIGH SPEED L0.0006600
