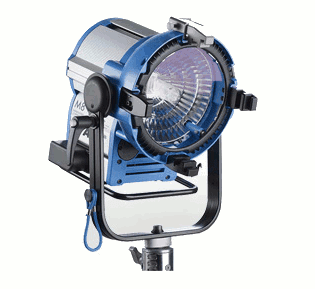

Arri M8 800w HMI Daylight System HIGH SPEED

PRODUCT DESCRIPTION

Arri M8 800w HMI Daylight System HIGH SPEED

The Arri M8 is the latest and smallest lighting fixture in ARRI's highly successful M-Series of HMI lampheads. Like the rest of the M-Series, the M8 is equipped with MAX Technology, a unique, patented reflector design that unifies the advantages of a Fresnel and a PAR fixture.

The combination of an open face design and the unrivalled efficiency of the MAX reflector makes the M8 exceptionally bright; in fact, the light output produced by its 800 W lamp comes close to the output from a 1,200 W Fresnel or PAR (with lens). The unit can be focused between 15 and 62 degrees just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. By eliminating the need for bulky, easily breakable spread lenses, the M8 will speed up workflows on set.

Arri M8 System Includes:

• M8 HMI Head
• Arri Electronic 575 / 800 High Speed Ballast
• Arri 50ft. Head Cable
• Arri 4 Leaf Barndoors

Features

• Lensless MAX Technology: easy to use
• Light output comparable to 1,200 W fixture
• Smallest lamphead with MAX reflector
• Highly mobile for a wide range of uses
• Focusable between 14.7 degree and 62 degree
• Cross cooling allows safe operation even at 90 derees tilt
• Uses existing 245 mm / 230 mm accessories of ARRI TRUE BLUE D12 & Chimera
• Uses existing 575/1,200/1,800 W cables
• Possibility to operate at 1,000 Hz
• Protection class IP23
• Tilt locks to hold heavy accessories stable

Technical Details

• Lamphead Type: Open Face with Facetted Reflector, 800 W
• Reflector Type: MAX reflector made of high purity aluminum
• Lamp Type: Metal Halide 800 W/SE ONLY!
• Power Consumption: 800 W
• Voltage Range: 90 - 130 V / 180 - 250 V
• Lamp Base: G22
• Dimmability: Yes, 50 - 100% via ARRI Ballast Unit
• Cable Options: VEAM, Schaltbau
• Correlated Color Temperature: 6000 K
• Beam Angle: 15 degree - 62 degree
• Product Weight: 7,8 kg / 17.2 lbs. (8,7 kg / 19.2 lbs. with barndoor)
• Shipping Weight: 9,5 kg / 20.9 lbs.
• Product Size (HxWxL): 458 x 344 x 311 mm / 18.03"x 13.5" x 12.2"
• Shipping Size (HxWxL): 440 x 400 x 460 mm / 17.3" x 15.8 x 18.1"
• UV Glass Diameter: 200mm / 7.87"
• Accessory Diameter: 230 mm / 9.06" (Scrim)
• Barndoor Size: 245 mm / 9.65"
• Mounting: Spigot 28 mm / 1 1/8" (1.1")
• Protection Class: I/IP 23
• Certifications: CE, CB, GS, cNRTL
